ESocket::Thread< TQueue, TMessage > Class Template Reference

The socket thread base class. An event based thread class capable of surfacing socket events. More...

#include <esocket.h>

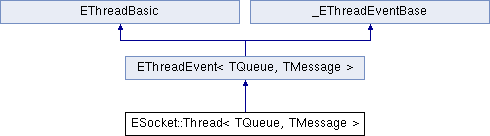

Inheritance diagram for ESocket::Thread< TQueue, TMessage >:

Public Member Functions
	Thread ()
	Default constructor. More...
virtual	~Thread ()
	Class destructor. More...
Void	registerSocket (Base< TQueue, TMessage > *socket)
	Called by the framework to register a Base derived socket object with this thread. More...
Void	unregisterSocket (Base< TQueue, TMessage > *socket)
	Called by the framework to unregister a Base derived socket object with this thread. More...
Int	getError ()
	Called when an error is detected. More...
Public Member Functions inherited from EThreadEvent< TQueue, TMessage >
	EThreadEvent ()
	Default class constructor. More...
	~EThreadEvent ()
	Rhe class destructor. More...
Bool	sendMessage (UInt message, Bool wait=True)
	Sends event message to this thread. More...
Bool	sendMessage (UInt message, pVoid voidptr, Bool wait=True)
	Sends event message to this thread. More...
Bool	sendMessage (const TMessage &msg, Bool wait=True)
	Sends event message to this thread. More...
virtual Void	init (Short appId, UShort threadId, pVoid arg, Int queueSize=16384, Bool suspended=False, Dword stackSize=0)
	Initializes the thread object. More...
Void	quit ()
	Posts the quit message to this thread. More...
Void	start ()
	Initializes the thread when it was suspended at init(). More...
Void	suspend ()
	Suspends a running thread. More...
Void	resume ()
	Resumes a suspended thread. More...
virtual Void	onInit ()
	Called in the context of the thread when the EM_INIT event is processed. More...
virtual Void	onQuit ()
	Called in the context of the thread when the EM_QUIT event is processed. More...
virtual Void	onSuspend ()
	Called in the context of the thread when th EM_SUSPEND event is processed. More...
virtual Void	onTimer (EThreadEventTimer *ptimer)
	Called in the context of the thread when th EM_TIMER event is processed. More...
Void	initTimer (EThreadEventTimer &t)
	Intializes an EThreadEvent::Timer object and associates with this thread. More...
ESemaphoreData &	getMsgSemaphore ()
	Returns the semaphore associated with this thread's event queue. More...
Public Member Functions inherited from EThreadBasic
	EThreadBasic ()
	Class constructor. More...
virtual	~EThreadBasic ()
	Class destructor. More...
Void	init (pVoid arg, size_t stackSize=0)
	Initialize and start the thread. More...
Void	join ()
	Waits for the thread to terminate. More...
Bool	isInitialized ()
	Returns the thread initialization state. More...
RunState	getRunState ()
	Returns the current thread run state. More...
Bool	isWaitingToRun ()
	Determines if the thread is waiting to run. More...
Bool	isRunning ()
	Determines if the thread is running. More...
Bool	isDoneRunning ()
	Determines if the thread has finished running. More...
Int	cancelWait ()
	Sends a cancellation request to the thread. More...
Void	signal (Int sig)

Friends
class	TCP::Talker< TQueue, TMessage >
class	TCP::Listener< TQueue, TMessage >
class	UDP< TQueue, TMessage >

Additional Inherited Members
Public Types inherited from EThreadBasic
enum	RunState { rsWaitingToRun, rsRunning, rsDoneRunning }
	EThreadBasic run states. More...
Static Public Member Functions inherited from EThreadBasic
static Void	sleep (Int milliseconds)
	Sleeps for the specified number of milliseconds. More...
static Void	yield ()
	Relinquishes the CPU. More...
Protected Member Functions inherited from EThreadEvent< TQueue, TMessage >
virtual Void	messageQueued ()
	Called when an event message is queued. More...
Bool	pumpMessage (TMessage &msg, Bool wait=true)
	Dispatches the next thread event message. More...
virtual Void	pumpMessages ()
	Process event messages. More...
virtual Void	defaultMessageHandler (TMessage &msg)
	The default event message handler. More...
pid_t	getThreadId ()
	Retrieves the internal thread ID. More...
Static Protected Member Functions inherited from EThreadBasic
static Void	Initialize ()
	performs internal initialization *** DO NOT CALL *** More...
static Void	UnInitialize ()
	performs internal de-initialization *** DO NOT CALL *** More...

Detailed Description

template<class TQueue, class TMessage>
class ESocket::Thread< TQueue, TMessage >

The socket thread base class. An event based thread class capable of surfacing socket events.

Constructor & Destructor Documentation

Thread()

template<class TQueue, class TMessage>

ESocket::Thread< TQueue, TMessage >::Thread ( )

inline

Default constructor.

~Thread()

template<class TQueue, class TMessage>

virtual ESocket::Thread< TQueue, TMessage >::~Thread ( )

inlinevirtual

Class destructor.

Member Function Documentation

getError()

template<class TQueue, class TMessage>

Int ESocket::Thread< TQueue, TMessage >::getError ( )

inline

Called when an error is detected.

registerSocket()

template<class TQueue, class TMessage>

Void ESocket::Thread< TQueue, TMessage >::registerSocket ( Base< TQueue, TMessage > *  socket )

inline

Called by the framework to register a Base derived socket object with this thread.

Parameters

socket

the socket to register.

unregisterSocket()

template<class TQueue, class TMessage>

Void ESocket::Thread< TQueue, TMessage >::unregisterSocket ( Base< TQueue, TMessage > *  socket )

inline

Called by the framework to unregister a Base derived socket object with this thread.

Parameters

socket

the socket to unregister.

Friends And Related Function Documentation

TCP::Listener< TQueue, TMessage >

template<class TQueue, class TMessage>

friend class TCP::Listener< TQueue, TMessage >

friend

TCP::Talker< TQueue, TMessage >

template<class TQueue, class TMessage>

friend class TCP::Talker< TQueue, TMessage >

friend

UDP< TQueue, TMessage >

template<class TQueue, class TMessage>

friend class UDP< TQueue, TMessage >

friend

---

The documentation for this class was generated from the following file:

• /home/vagrant/share/code/epctools/include/epc/esocket.h
